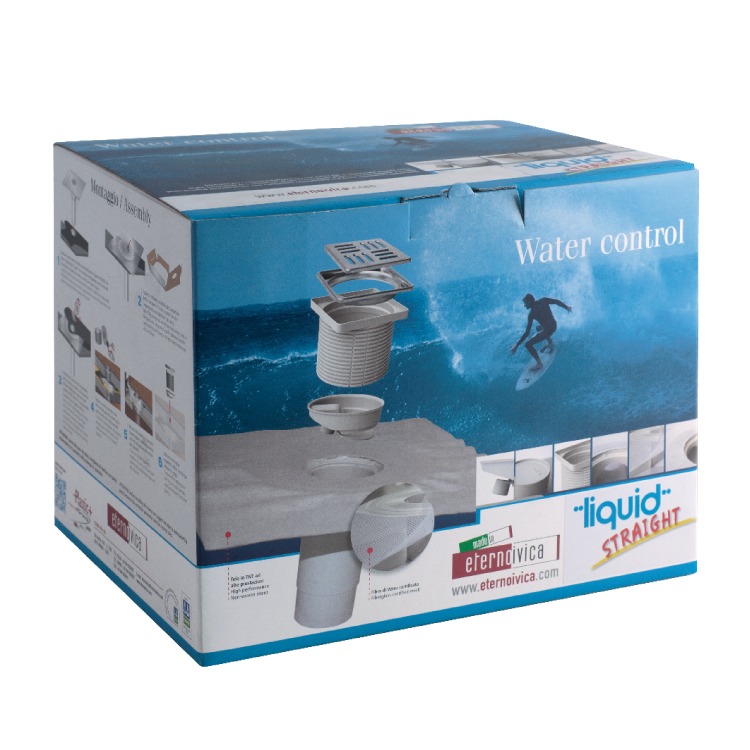

KIT liquid straight telescopic with non woven sheet - diameter 100 mm
- Stainless Steel Grating and Frame
- Anti-intrusion system diameter 50/75/82/90/100 mm
- Telescopic Extension H90 - H50 - H18
- Water drainage grooves
- “Non-stop water” internal grooves
- Upper and lower knurled flange to improve the anchoring of the liquid waterproofing layers
- Sheet made from high-performance non-woven fabric
- Vertical drain cover diameter 50/75/82/90/100 mm
- Side drain cover diameter 50/75/90 mm
- Sloping bottom to prevent water stagnation
| Type |
kit Ø 100 with Extension element H.90 mm, Anti-odour cap Ø 100 and inox Grating |
| For pipes diameter | 100 mm |

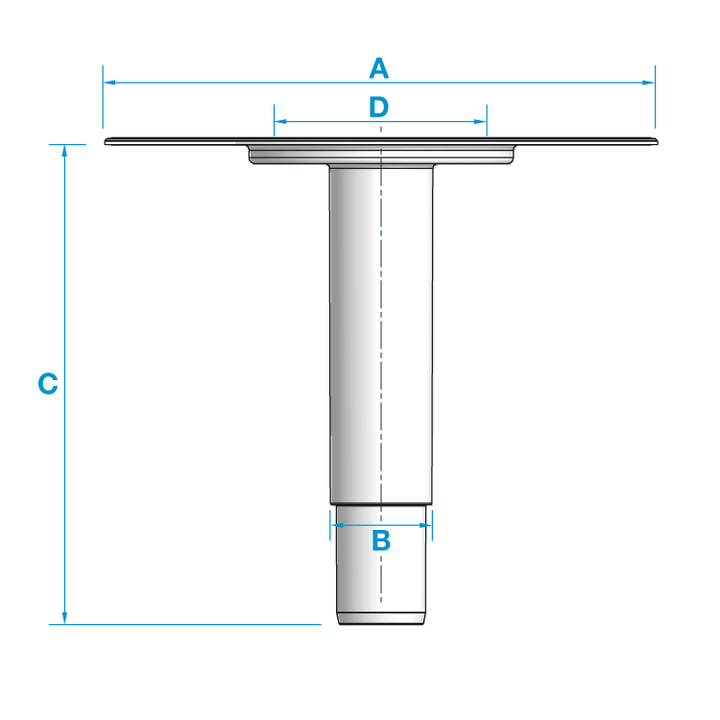

| A | 230 |
| B | 94,1 |
| C | 200 |
| D | 89,8 |
| Código | Type | Pcs (Box) | Pcs (Pallet) | |
|---|---|---|---|---|
| A400011100 | Kit liquid | 1 | 108 |
Especificações
| MATERIALS | Polypropylene |
| APPLICATIONS | Liquid waterproofing, cementitious bicomponent application with roll |
| COMPATIBILITY | Oxidized bitumen, cold liquid membrane, two-component cement |
| APPLICATIONS | Polyurethane and epoxy resins |
