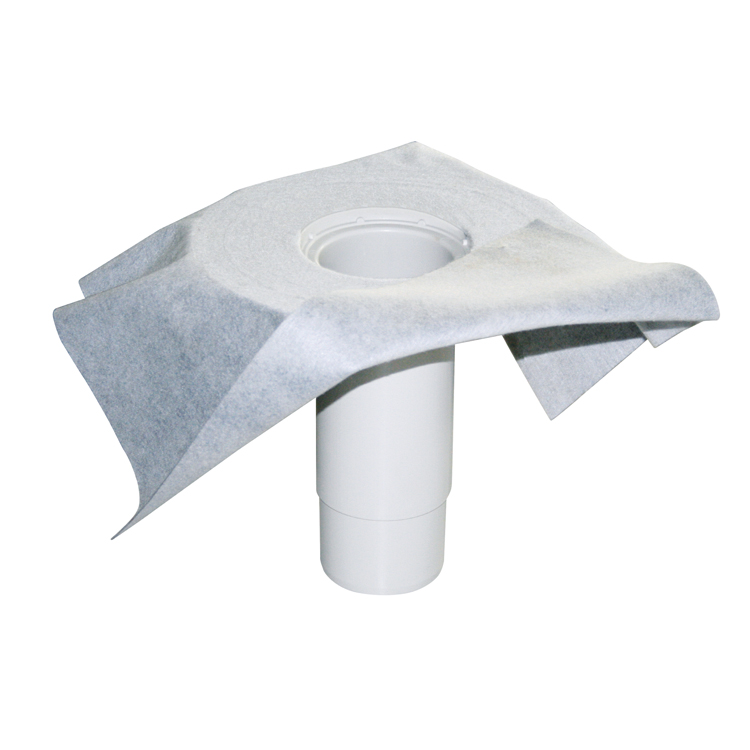

Roof drain liquid straight telescopic with non woven sheet - diameter 75 mm
- Stainless Steel Grating and Frame
- Anti-odour waterless cap diameter 50/75/82/90/100 mm
- Telescopic Extension H90 - H50 - H18
- Water drainage grooves
- “Non-stop water” internal grooves
- Upper and lower knurled flange to improve the anchoring of the liquid waterproofing layers
- Sheet made from high-performance non-woven fabric
- Vertical drain cover diameter 50/75/82/90/100 mm
- Side drain cover diameter 50/75/90 mm
- Sloping bottom to prevent water stagnation

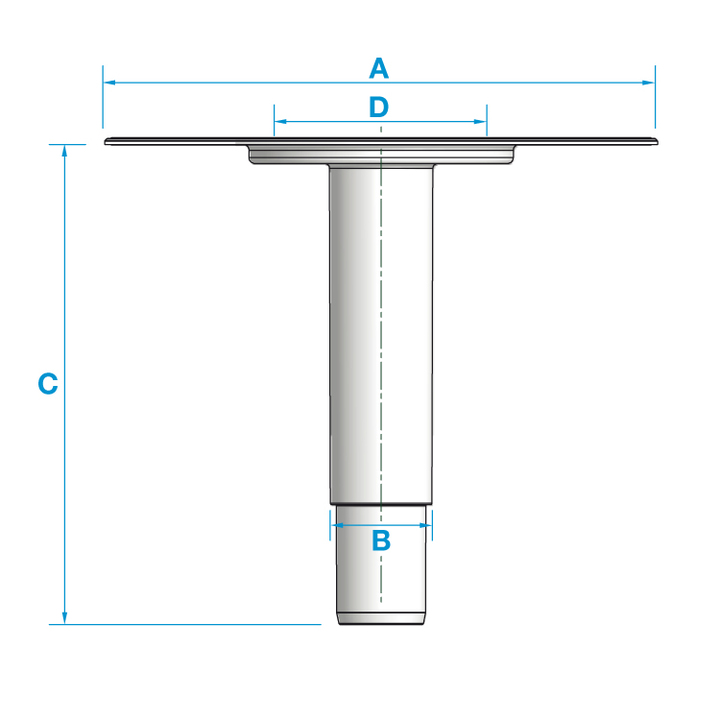

For pipes diameter |
75 mm |
A |
230 |
B |
70,3 |
C |
200 |
D |
66 |
Code |
Type |
Pcs (Box) |
Pcs (Pallet) |
|
A401011075 |
liquid roof drain
|
9
|
144
|
|
Specifications
MATERIALS |
Polypropylene |
APPLICATIONS |
Liquid waterproofing, cementitious bicomponent application with roll |
COMPATIBILITY |
Oxidized bitumen, cold liquid membrane, two-component cement |
APPLICATIONS |
Polyurethane and epoxy resins |
