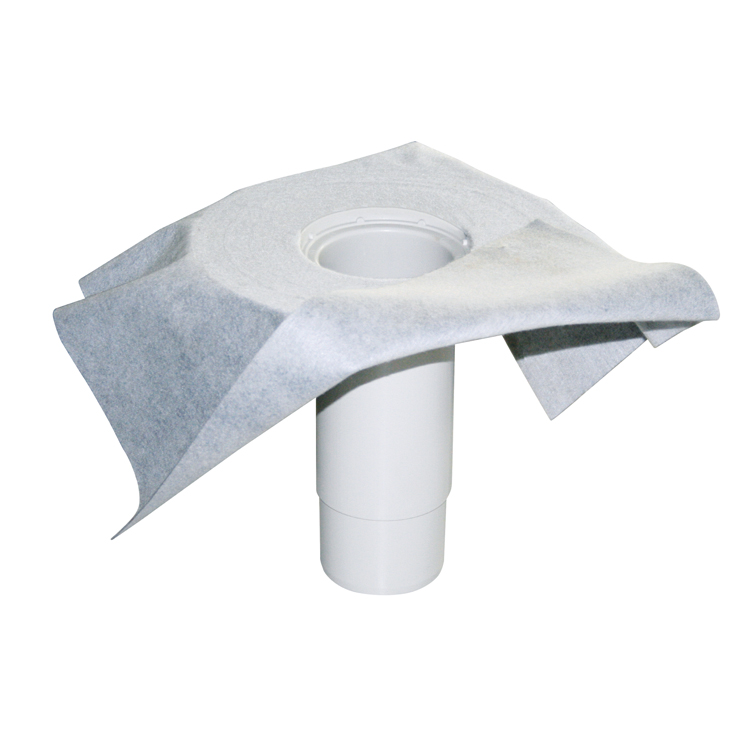

Roof drain liquid straight telescopic with non woven sheet - diameter 50 mm

Roof drain liquid straight telescopic with non woven sheet - diameter 50 mm
  • Stainless Steel Grating and Frame
  • Anti-odour waterless cap diameter 50/75/82/90/100 mm
  • Telescopic Extension H90 - H50 - H18
  • Water drainage grooves
  • “Non-stop water” internal grooves
  • Upper and lower knurled flange to improve the anchoring of the liquid waterproofing layers
  • Sheet made from high-performance non-woven fabric
  • Vertical drain cover diameter 50/75/82/90/100 mm
  • Side drain cover diameter 50/75/90 mm
  • Sloping bottom to prevent water stagnation

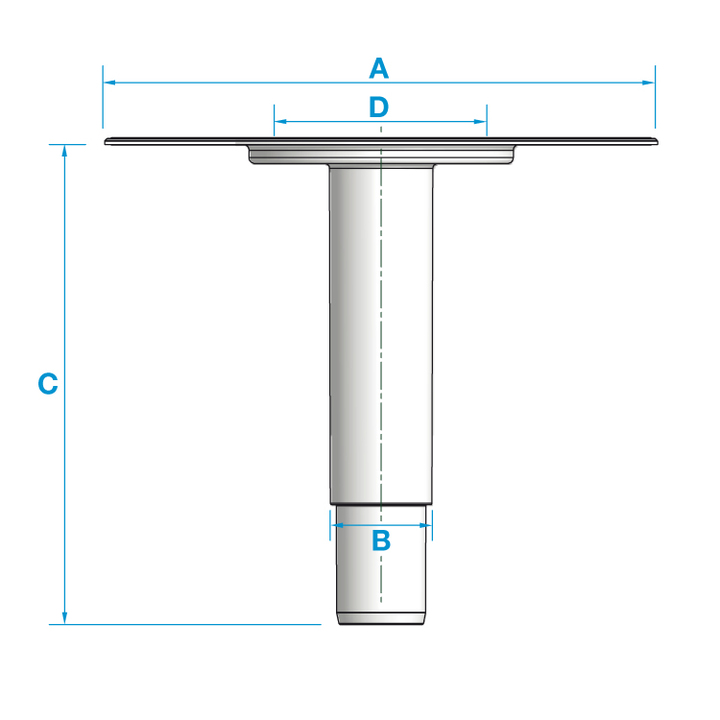

For pipes diameter 50 mm
A 230
B 42,3
C 200
D 42,3



Roof drain liquid straight telescopic with non woven sheet - diameter 50 mm



Code Type Pcs (Box) Pcs (Pallet)
A401011050 liquid roof drain 9 144

Specifications

MATERIALS Polypropylene
APPLICATIONS Liquid waterproofing, cementitious bicomponent application with roll
COMPATIBILITY Oxidized bitumen, cold liquid membrane, two-component cement
APPLICATIONS Polyurethane and epoxy resins
