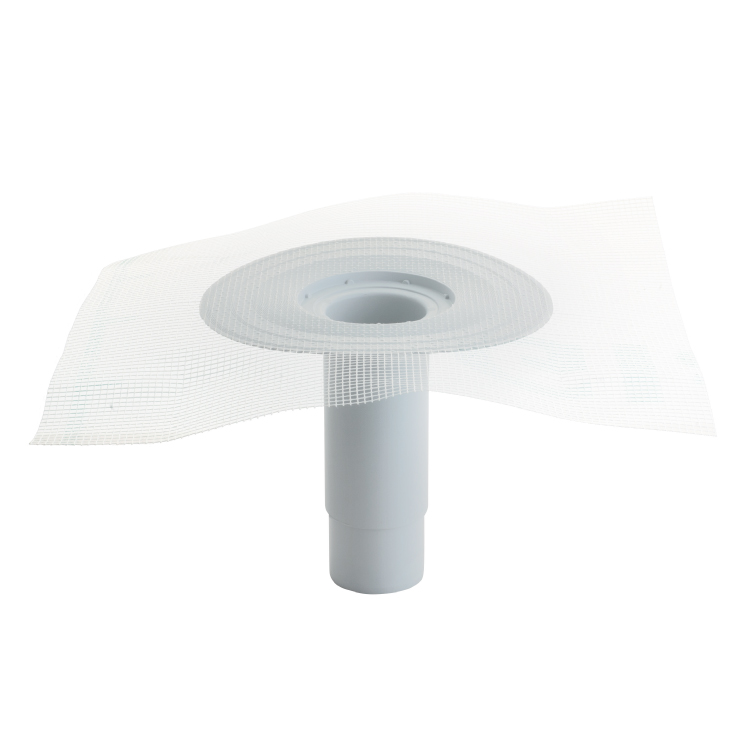

Roof drain liquid straight telescopic with fiberglass mesh - diameter 50 mm
- Stainless Steel Grating and Frame
- Anti-odour waterless cap diameter 50/75/82/90/100 mm
- Telescopic Extension H90 - H50 - H18
- Water drainage grooves
- “Non-stop water” internal grooves
- Upper and lower knurled flange to improve the anchoring of the liquid waterproofing layers
- High-performance certified Fibreglass mesh
- Vertical drain cover diameter 50/75/82/90/100 mm
- Side drain cover diameter 50/75/90 mm
- Sloping bottom to prevent water stagnation
|

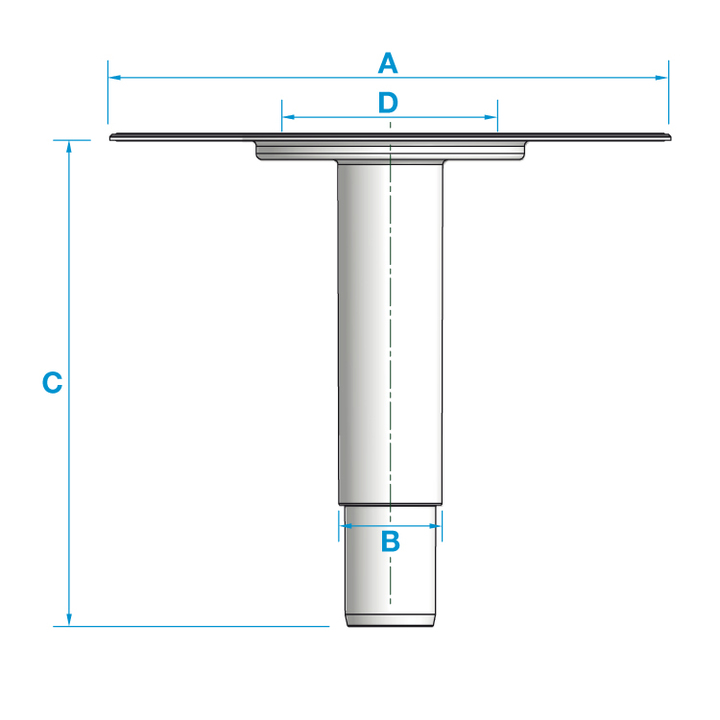

For pipes diameter
|
50 mm |
| A |
230 |
| B |
42,3 |
| C |
200 |
| D |
42,3 |
| Code |
Type |
Pcs (Per Box) |
Pcs (Pallet) |
|
| A401012050 |
Roof drain liquid
|
9
|
144
|
|
Specifications
| MATERIALS |
Polypropylene |
| APPLICATIONS |
Liquid waterproofing, cementitious bicomponent application with roll |
| COMPATIBILITY |
Oxidized bitumen, cold liquid membrane, two-component cement |
| APPLICATIONS |
Polyurethane and epoxy resins |
