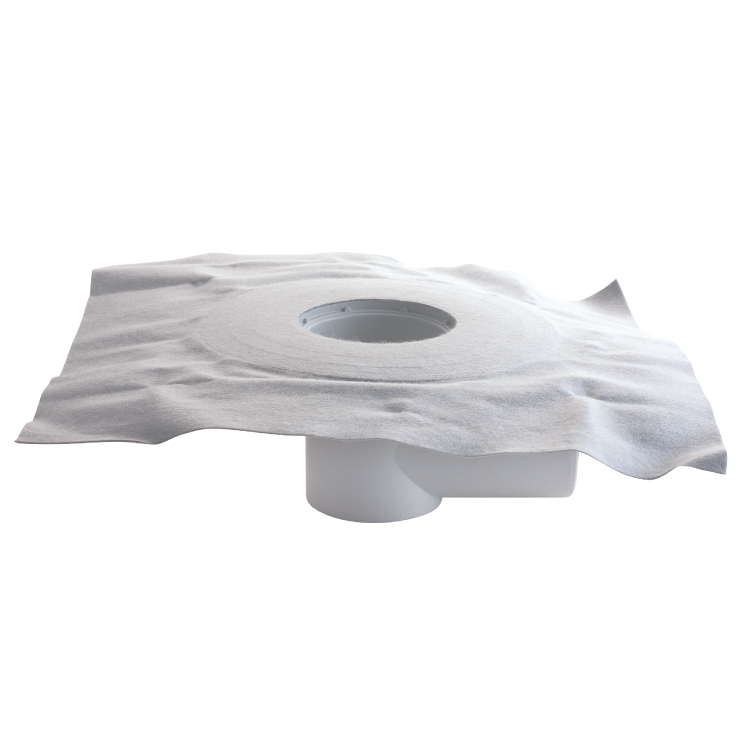

Roof drain liquid side telescopic with non woven sheet - diameter 75 mm

Roof drain liquid side telescopic with non woven sheet - diameter 75 mm
  • Stainless Steel Grating and Frame
  • Anti-odour waterless cap diameter 50/75/82/90/100 mm
  • Telescopic Extension H90 - H50 - H18
  • Water drainage grooves
  • “Non-stop water” internal grooves
  • Upper and lower knurled flange to improve the anchoring of the liquid waterproofing layers
  • Sheet made from high-performance non-woven fabric
  • Vertical drain cover diameter 50/75/82/90/100 mm
  • Side drain cover diameter 50/75/90 mm
  • Sloping bottom to prevent water stagnation

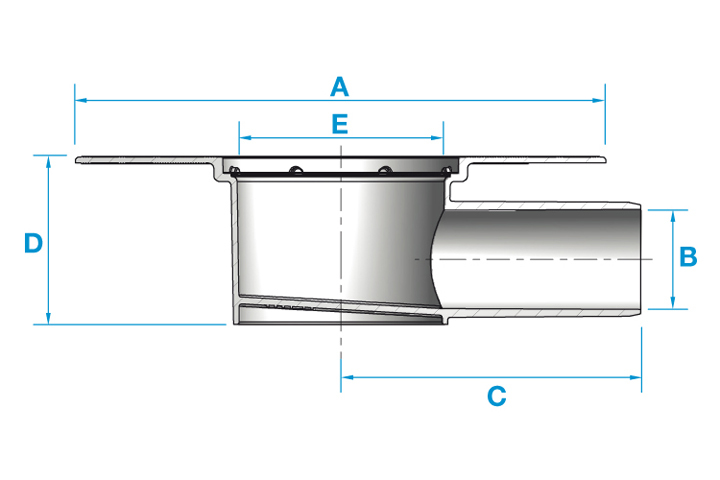

For pipes diameter 75 mm
A 230
B 73,1
C 130
D 90
E 89,9



Roof drain liquid side telescopic with non woven sheet - diameter 75 mm



Code Type Pcs (Box) Pcs (Pallet)
A401021075 liquid roof drain 18 252

Specifications

MATERIALS Polypropylene
APPLICATIONS Liquid waterproofing, cementitious bicomponent application with roll
COMPATIBILITY Oxidized bitumen, cold liquid membrane, two-component cement
APPLICATIONS Polyurethane and epoxy resins
