KIT liquid side telescopic with non woven sheet - diameter 75 mm
- Stainless Steel Grating and Frame
- Anti-intrusion system diameter 50/75/82/90/100 mm
- Telescopic Extension H90 - H50 - H18
- Water drainage grooves
- “Non-stop water” internal grooves
- Upper and lower knurled flange to improve the anchoring of the liquid waterproofing layers
- Sheet made from high-performance non-woven fabric
- Vertical drain cover diameter 50/75/82/90/100 mm
- Side drain cover diameter 50/75/90 mm
- Sloping bottom to prevent water stagnation

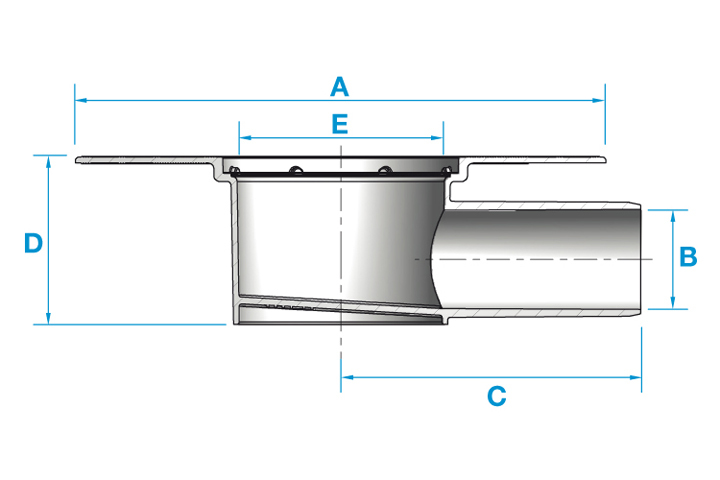

| Type |
kit Ø 75 with Extension element H.90 mm, Anti-odour cap Ø 100 and inox Grating
|
| For pipes diameter |
75 mm |
| A |
230 |
| B |
73,1 |
| C |
130 |
| D |
90 |
| E |
89,9 |
| Code |
Type |
Pcs (Box) |
Pcs (Pallet) |
|
| A400021075 |
Kit liquid
|
1
|
204
|
|
Specifications
| MATERIALS |
Polypropylene |
| APPLICATIONS |
Liquid waterproofing, cementitious bicomponent application with roll |
| COMPATIBILITY |
Oxidized bitumen, cold liquid membrane, two-component cement |
| APPLICATIONS |
Polyurethane and epoxy resins |
